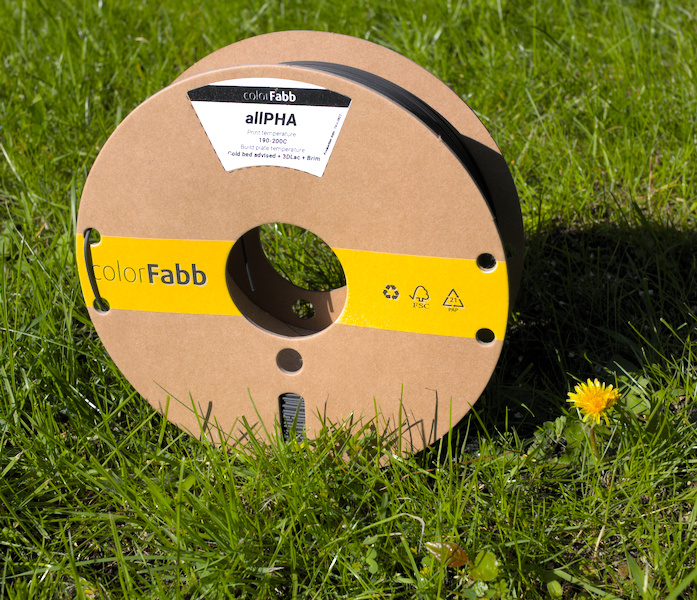

ColorFabb ALLPHA Filament
Several months ago, Fillamentum launched NonOilen, a filament that is produced entirely without petroleum and can be used in the garden without leaving microplastics. In June 2022, ColorFabb launched a similar product that is Polymer based completely different. We would like to introduce you to the brand new ALLPLA from ColorFabb and compare it with NonOlien.
What is PHA?
Some already know ColorFabb's PLA/PHA blend, which has better properties than standard PLA, but what exactly is PHA and what makes it so special?
It is produced by bacterial fermentation. Polyhydroxyalkanoate polymers (PHA) are produced by microorganisms (bacteria) and can also be completely eaten (decomposed) by microorganisms. Overfeeding the bacteria creates “fat cells”. PHA is a natural polymer that has not been chemically modified. PHA is fully biodegradable in your garden and therefore minimizes environmental pollution. The well-known PLA, on the other hand, can only be decomposed in an industrial plant at higher heat. PHA materials do not release toxic microplastics into the environment. PHA is not the same as PHA, as different types of bacteria also produce different types of PHA. It is difficult to use a PHA alone to make a filament. ColorFabb has therefore combined different types of PHA to produce the filament. ColorFabb only adds bio-friendly additives to improve material properties, effects and colors.
Even if all cost reduction potentials are exhausted, conventional PHA from microbial fermentation will be three times more expensive than bulk petrochemical polymers.
More information can be found here.
Filament properties:
- Is made from various bacteria without petroleum
- Is decomposed on the home compost by bacteria without microplastics
- PHA is biodegradable in salt and fresh water
- PHA is nontoxic and foodsafe
- PHA shows exceptional layer to layer adhesion in most printing conditions
- The material feels tough and capable and is stable to very high temperatures (>120C)
- Unlike other filaments, PHA needs to be printed on a cold bed!
- PHA have a low permeation of water. Drying is not required before printing
- PHA is completely jerk-free when printing
- PHA is not suitable for outdoor use, because it is not UV stable
- PHAs are soluble in halogenated solvents such chloroform, dichloromethane or dichloroethane
- Density: 1,24g/cm3
- Diameter Tolerance: ± 0.1 mm, available in 1.75mm and 2.85mm diameter
Download PDF: ColorFabb ALLPHA Technical Datasheet
Colors:
ColorFabb Allpha is currently only available in three colors and these are:
- Black
- Natural
- White
According to ColorFabb, the color palette is to be further expanded.
Printing guid:
The parameters depend on the nozzle diameter and the layer height. Here are the parameters for our Ultimaker Cura Visual Normal printing profile with a layer height of 0.2mm:
My Test environment:
- Printer: Weedo X40 PRO (with X40-Community Coolingsystem and Firmware X40 PRO)
- Nozzle: 0,4mm, Zodiac MK8 PRO
- Build platform: BuildTak PEI Film
- Slicer: Ultimaker Cura 5.0.0 with Weedo X40 PRO Configuration and Weedo X40 Thumbnail plugin
Weedo X40 Visual Normal printing profile for Cura 5.X
Quality
|
Layer height |
0.2 |
|
Initial layer height |
0.3 |
|
Line width |
0.4 |
|
Initial layer line width |
100% |
Walls
|
Wall Thickness |
1.2 |
|
Optimize Wall Printing Order |
True |
|
Wall Ordering |
Outside |
Top/Bottom
|
Top/Bootom Thickness |
1.2 |
|
Monotonic Top/Bottom Order |
True |
Infill
|
Infill Density |
20% |
|
Infill Line Distance |
7.2 |
|
Infill Pattern |
Cubic |
Material
|
Printing Temperature |
195°C |
|
Build Plate Temperature |
0°C |
|
Flow |
100% |
|
Horizontal Scaling Factor Shrinkage Compensation |
100% |
|
Vertical Scaling Factor Shringage Compensation |
100% |
|
Enable Linear Advance |
True |
| Linear Advance Factor (Needs Linear Advance Settings Plugin) |
0.25 |
Speed
|
Print Speed |
40mm/s |
|
Wall Speed |
20mm/s |
|
Top/Bottom Speed |
20mm/s |
|
Skirt/Brim Speed |
16mm/s |
|
Enable Acceleration Control |
False |
|
Enable Jerk Control |
False |
Travel
|
Retraction Distance |
5,5mm |
|
Retraction Speed |
30mm/s |
|
Combing Mode |
Not in Skin |
|
Retract Before Outer Wall |
True |
|
Z Hop When Retracted |
False |
Cooling
|
Enable Print Cooling |
True |
|
Initial Fan Spped |
0% |
|
Regular Fan Speed at Layer |
3 |
Support (If needed)
|
Support Z Distance |
0,2mm |
|
Support X/Y Distance |
0,8mm |
Build Plate Adhesion
|
Build Plate Adhesion Type |
None |
|
Brim Width |
8mm |
Experimental
|
Enable Bridge Settings |
True |
|
Bridge Has Multiple Layers |
True |
Tip for removing the print objects:
With larger parts, the adhesion to the print bed can become extreme and damage the component or print bed. For large parts, ColorFabb recommends heating the print bed to 90°C and holding it for about 15 minutes. The heat induces crystallization, which makes it easier to detach the printed part from the plate. Brim should not be used on small parts.
No stringing

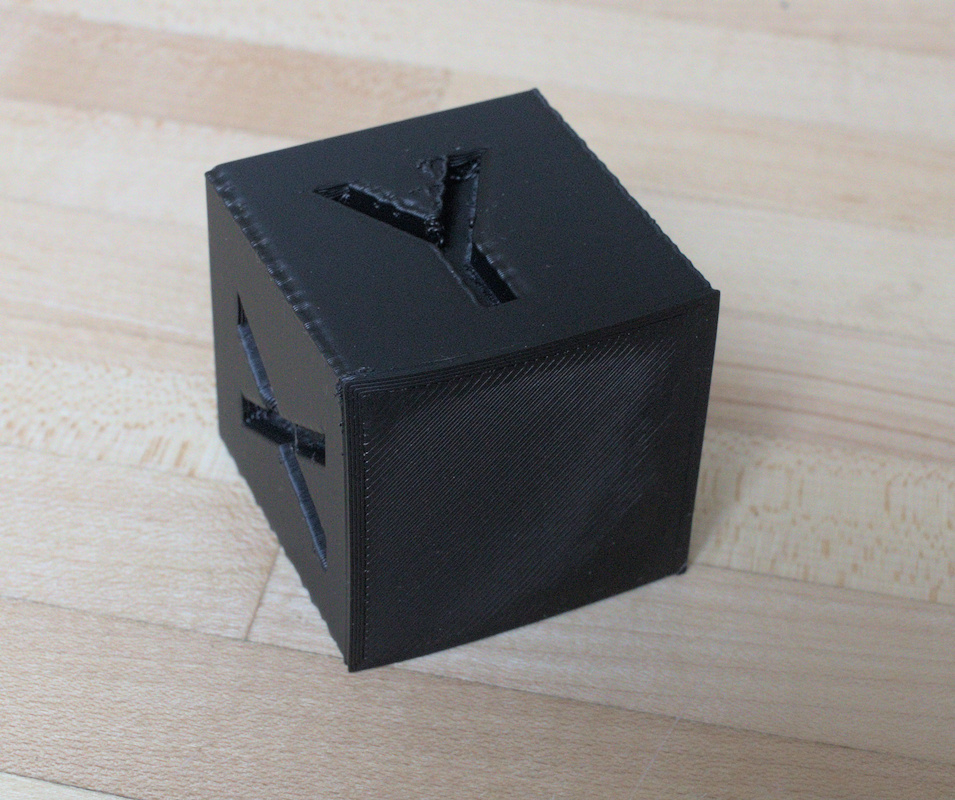

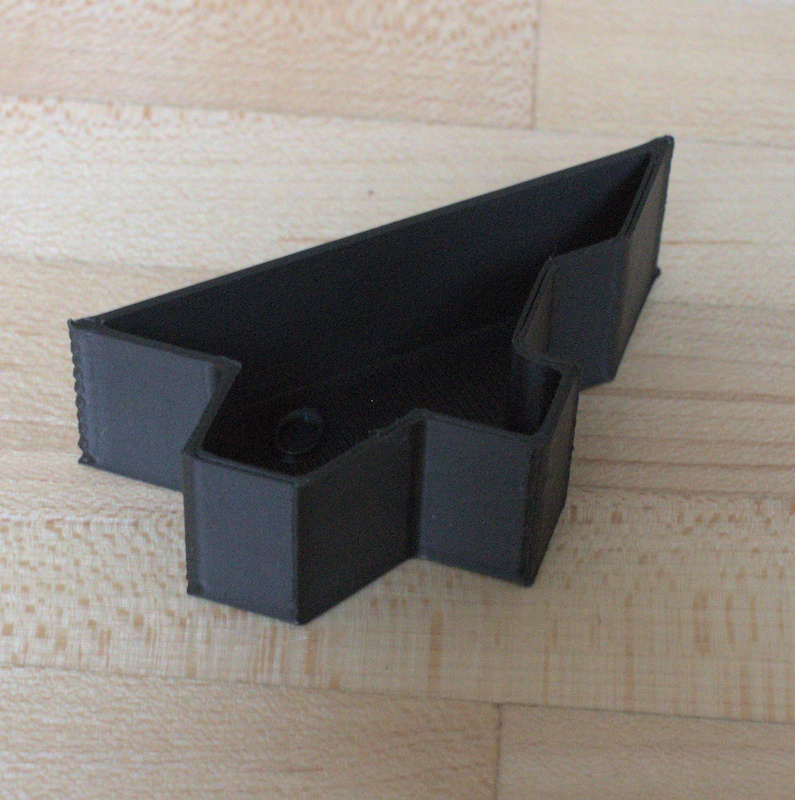

Warping and unsightly edges
Test print for Linear advance k-factor

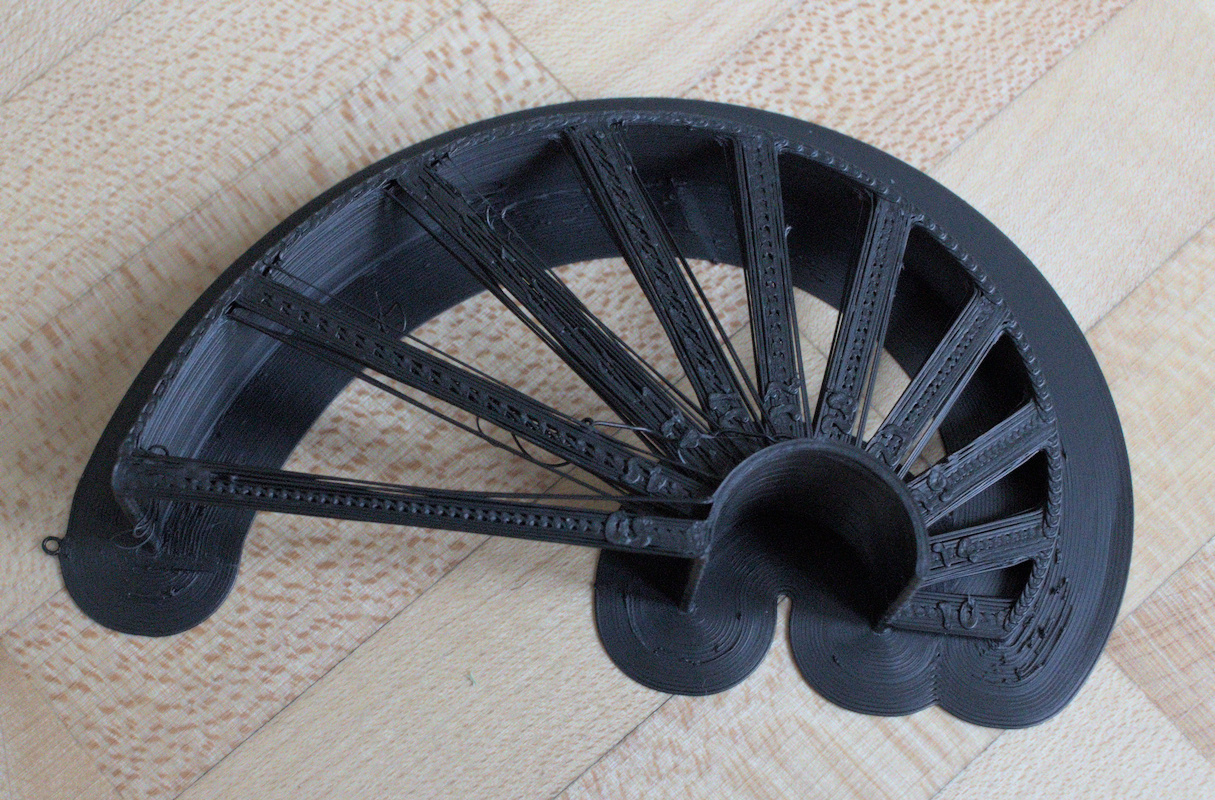

Maybe I haven't set the right bridge parameters in Cura yet, I can only print bridges up to 20mm in length. Other filaments can do this much better.
Material for support structures
The Beakeaway support structure works. The values for 0.2mm layer height can be found in the guide. Dissolvable support compatibility has yet to be tested.
Multi-material compatibility
The compatibility test with different filaments has not yet been carried out.
ColorFabb ALLPHA vs. Fillamentum NonOilen
ALPHA and NonOlien are both filaments that leave no microplastic behind. NonOlien offers print quality that does not differ from other filaments and can also be recycled very well. AllPHA has extremely strong lay adhesion and can withstand high temperatures.
You have to decide for yourself what is better for you.
Specification:
| Filament | ColorFabb ALLPHA | Fillamentum NonOilen | Tarfuse ENVI 1 |
| Polymer base | PHA Blend | PLA/PHB Blend | unknown |
| Density | 1,24 g/cm³ | 1,20 g/cm³ | 1,30 g/cm³ |
| Diameter toleranze | +/-0,1 mm | +/-0,05 mm | unknown |
| Tensile modulus | 2519 MPa (ISO 527) | 1900 MPa (ISO 527) | 2840 MPa |
| Tensile strength | 24 MPa (ISO 527) | 31,2 MPa (ISO 527) | 33 MPa |
| Elongation at break | 4,5% | 7,7% | 1,8% |
| Charpy impact strength, unnotched | 25,4 kJ/m² (ISO 179) | 25.6 kJ/m² (ISO 179) |
unknown |
| Charpy impact strength, notched | 3,4 kJ/m² (ISO 179) | 2.4 kJ/m² (ISO 179) | unknown |
| Hardness | 62 Shore D (ISO 7619) | 71 Shore D (ISO 868) | unknown |
| Heat distortion temperature | 153°C (ISO 75) | 119°C (ISO 75) | unknown |
| Safe for food-contact applications | Yes | Yes | unknown |
| Recyclability | Unkown | Recyclable, many times without loss of properties | unknown |
| Decomposition in compost | Yes | 3x faster than PLA | unknown |
| Ecological damage | No microplastics | No microplastics | No microplastics |
| Price (2022-06-04) |
64,00 EUR/kg | 53,34 EUR/kg | 34,90 EUR/kg |

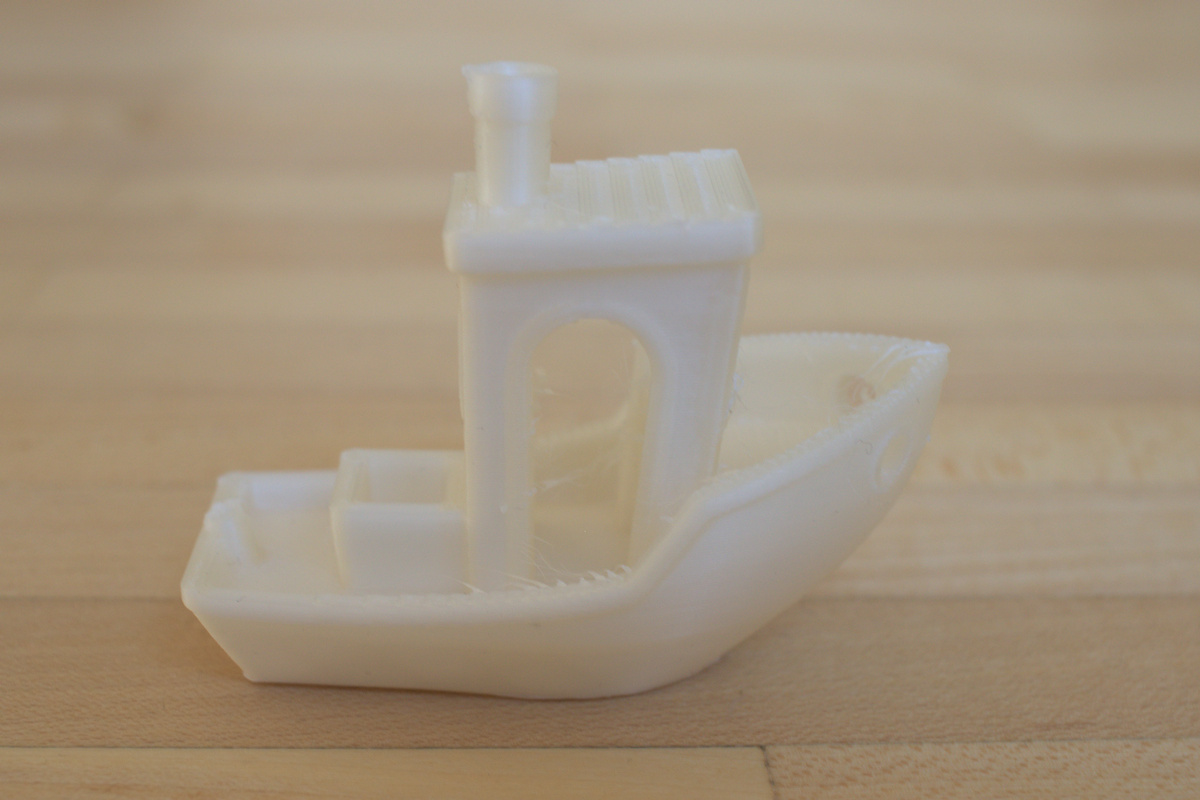

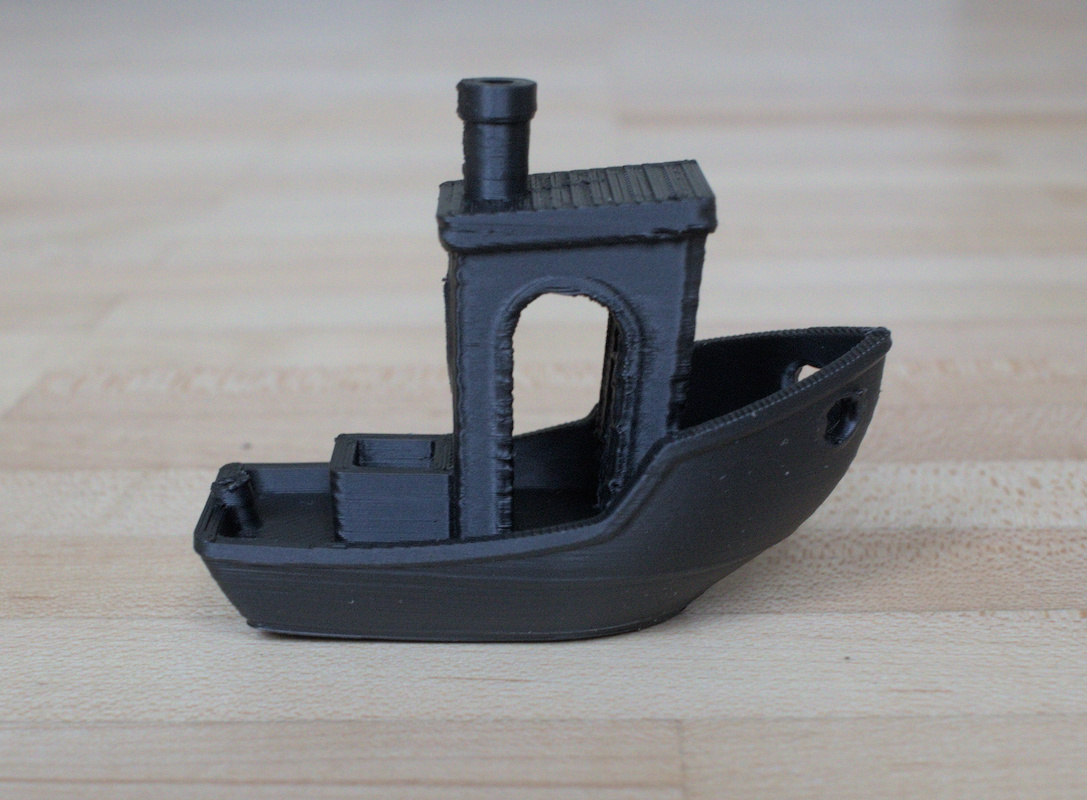

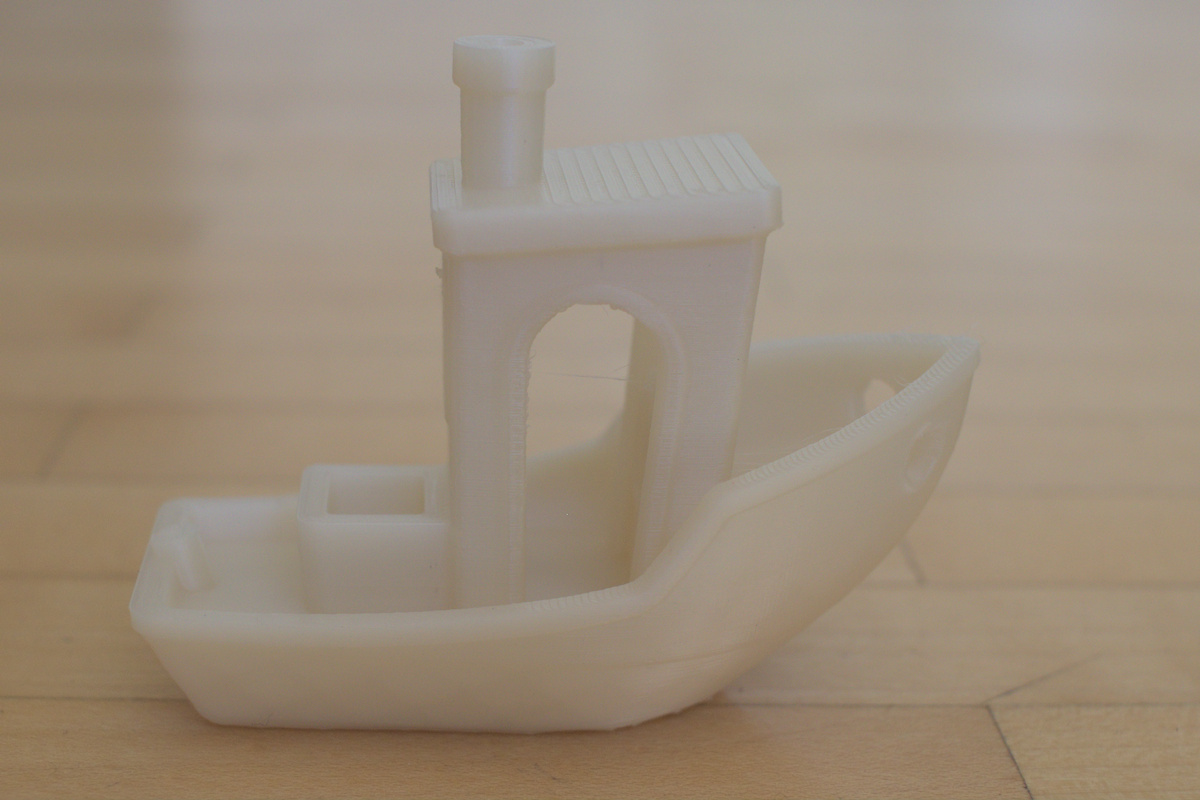

| Benchy print result |
|
 |
 |
Source: Manufacturer's website, no guarantee of completeness and correctness
According to the data, ALLPHA is stiffer and more heat-resistant, but not quite as strong as NonOilen.
As usual, you can find my reviews below Tested Filament
